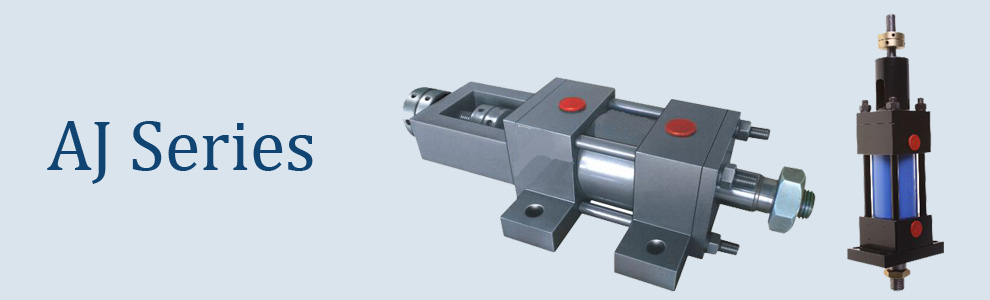

AJ Series

[ Tie rod construction, Stroke adjustable Maximum pressure - 160 bar ]

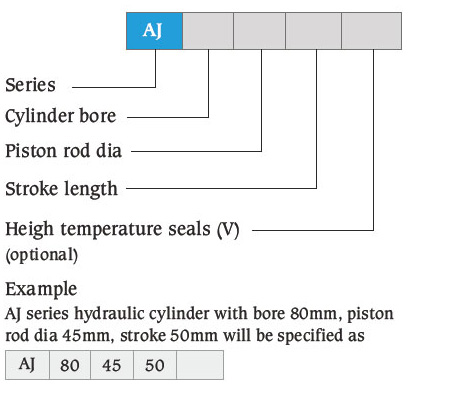

Ordering details of AJ series Neulogic




Features and specifications
• Mechanical stroke adjustment
• Standard construction, square head, tie    rod design
• Provision for smaller as well as bigger    rod diameter for each bore size
• Bore sizes : 40mm to 160mm
• Strokes available in any practical stroke    length
• Maximum working pressure : 160 bar
• Piston rods : 18mm to 110mm
• Non-cushioned
• Temperature range -
   -20 C to 80 C (standard)
   -20 C to +150 C (optional)
• Standard fluid : Mineral oil, DIN 51524    (HL, HLP)
• Seals types to suit a wide variety of    operating environments

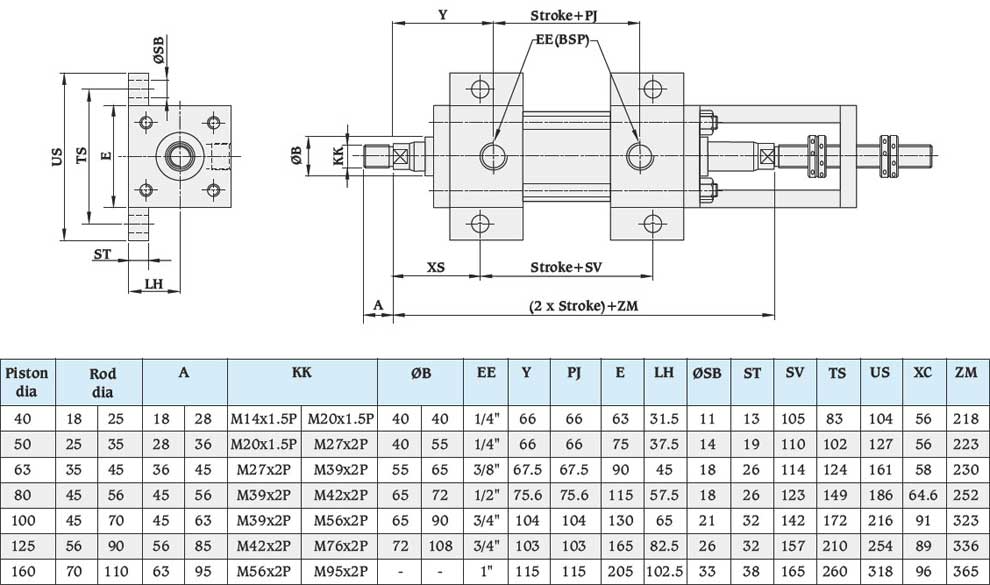

All dimensions are in millimeters unless otherwise stated.
