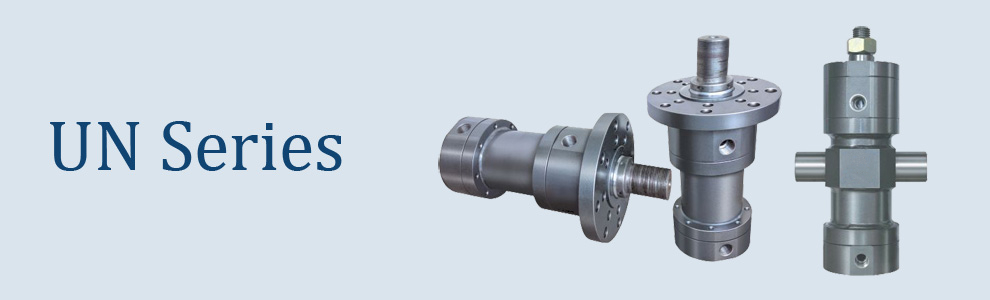

UN Series
[ Mill type welded round construction
Maximum Pressure - 160 bar, As per ISO - 6020/1 (2007) ]

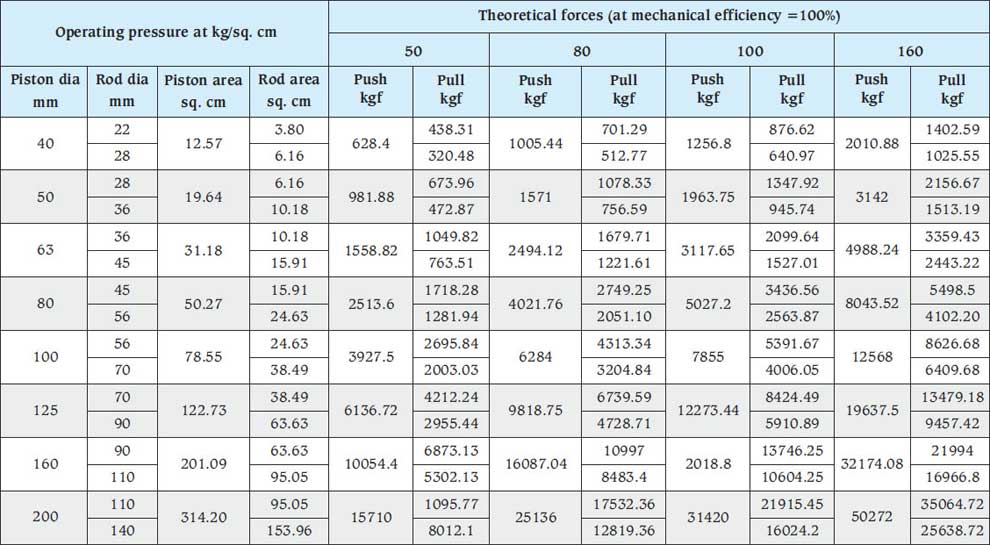

Cylinder selection guide

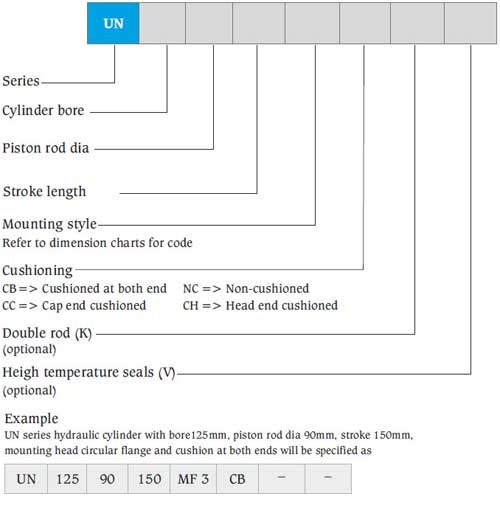

Ordering details of UN Series Neulogic
Features and specifications

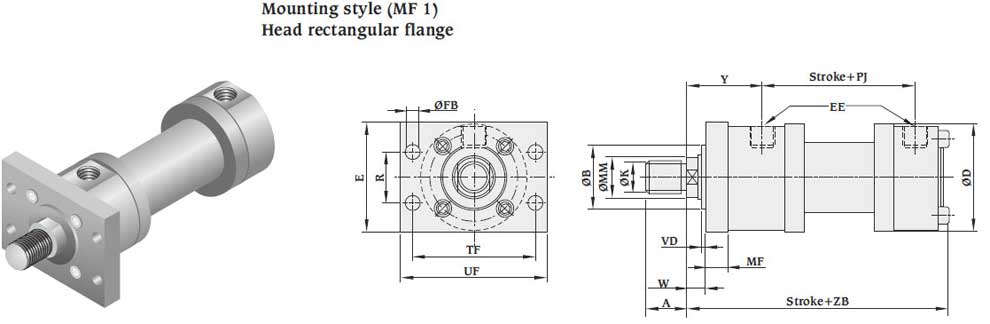

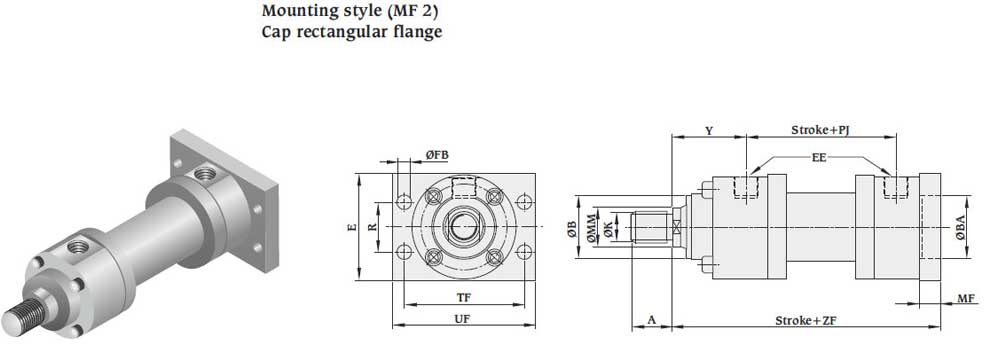

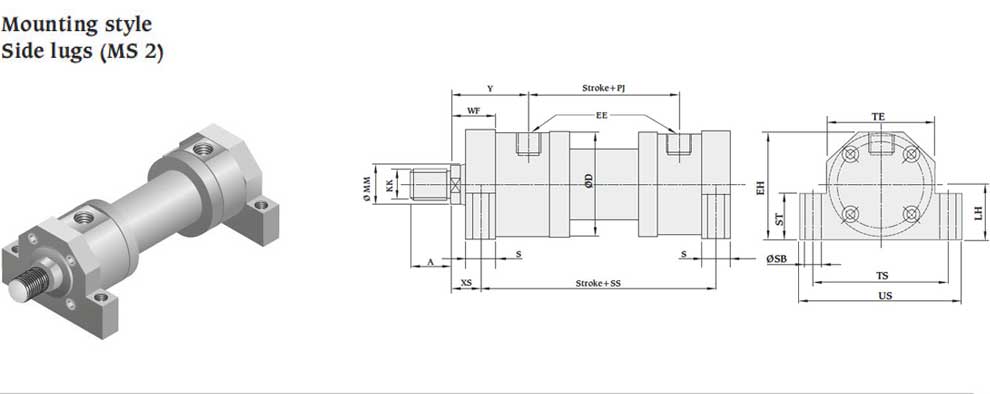

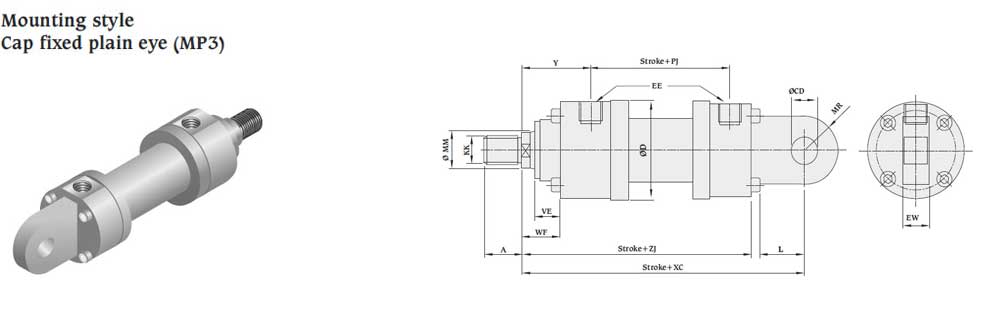

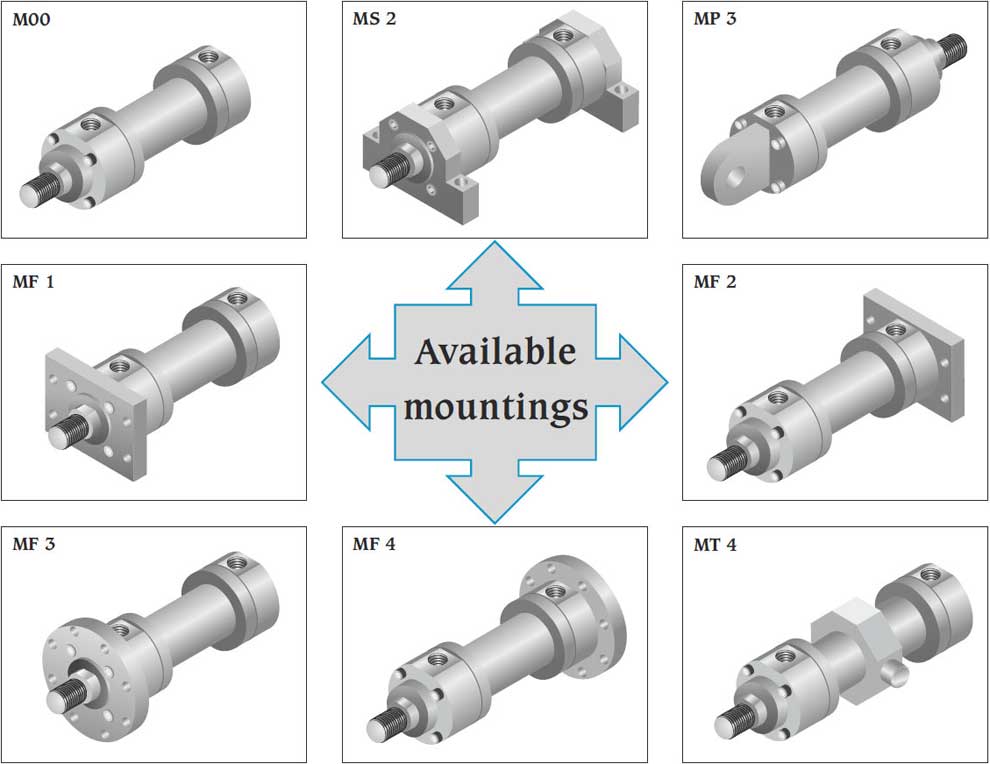

• Interchangeable mountings• 8 Standard mounting styles
• Provision for smaller as well as bigger rod diameter for each bore size
• Wide range of mounting accessories
• Bore sizes - 40mm to 200mm
• Strokes available in any practical stroke length
• Maximum working pressure - 160 bar
• Piston rods - 22mm to 140mm
• Single rod designs
• Cushioning available from 63mm bore onwards only
• Cushions available at either end
• Temperature range : -
-20 C to +80 C (standard)
-20 C to +150 C (optional)
• Seal types to suit a wide variety of operating environments
• Standard fluid - Mineral oil DIN 51524 (HL, HLP)

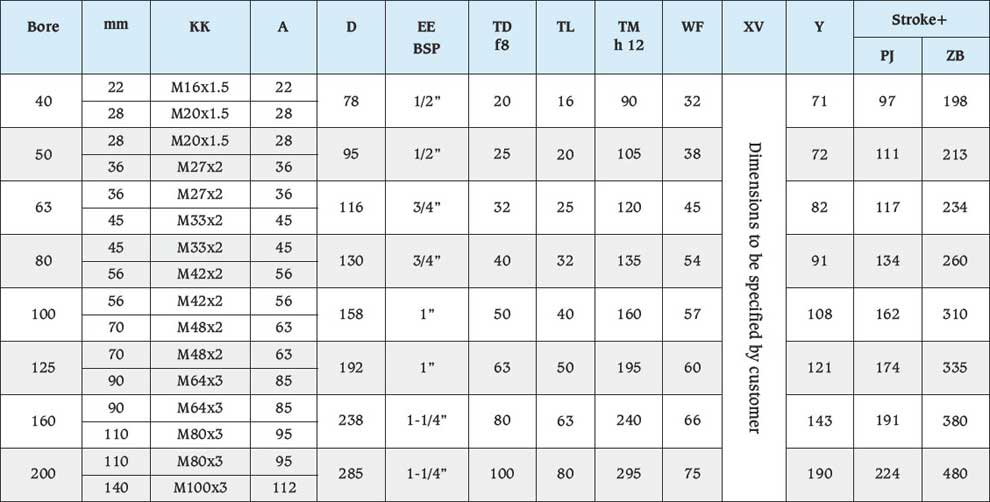

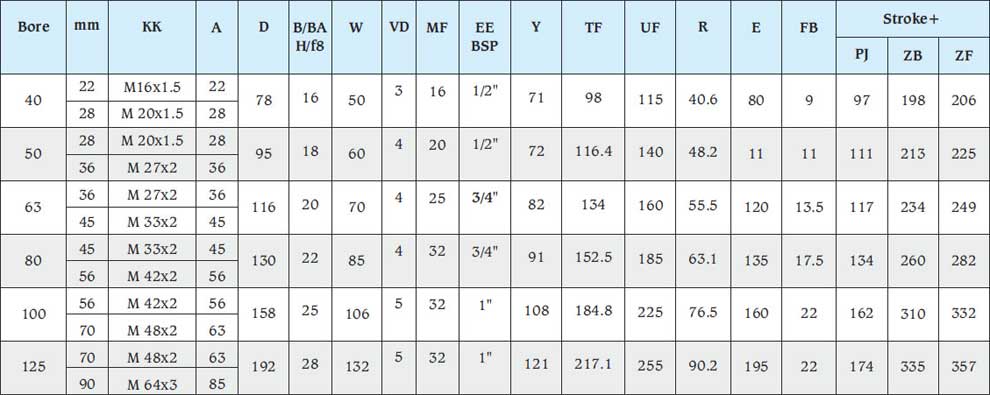

All dimensions are in millimeters unless otherwise stated.
