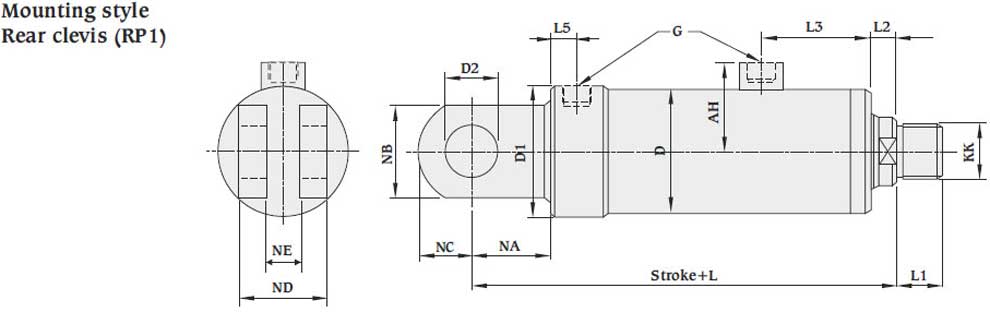

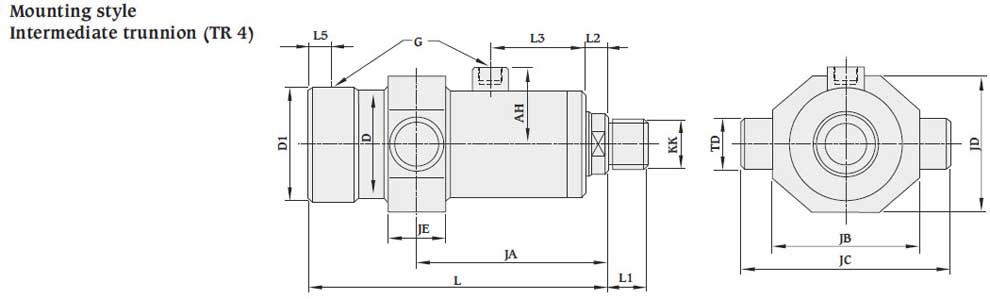

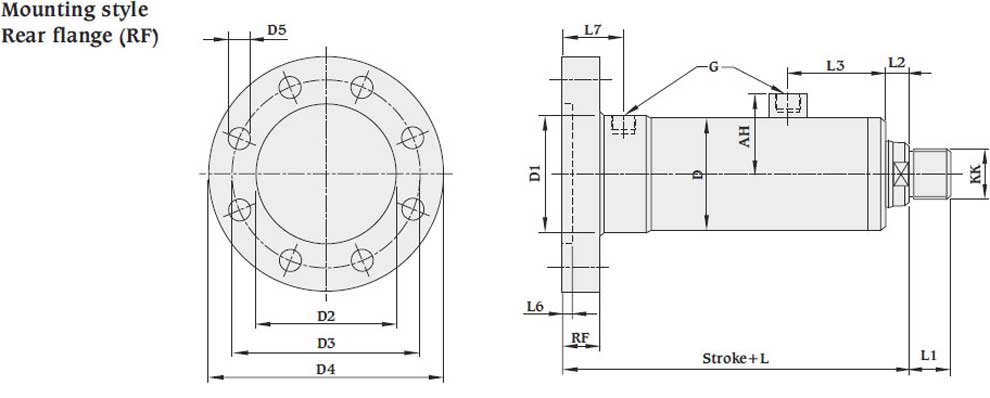

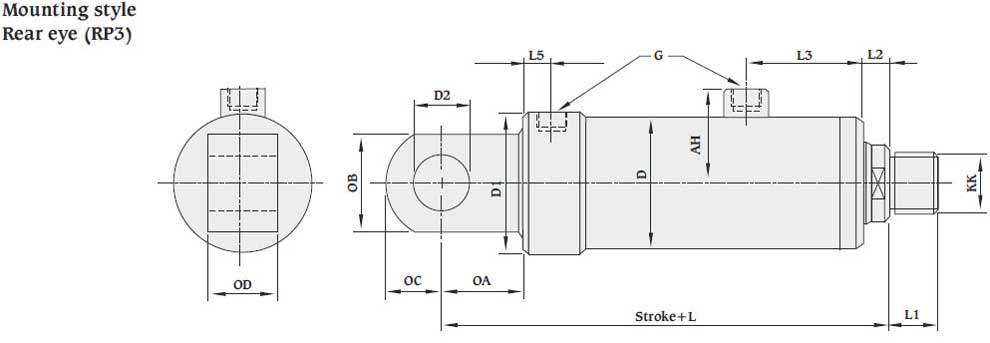

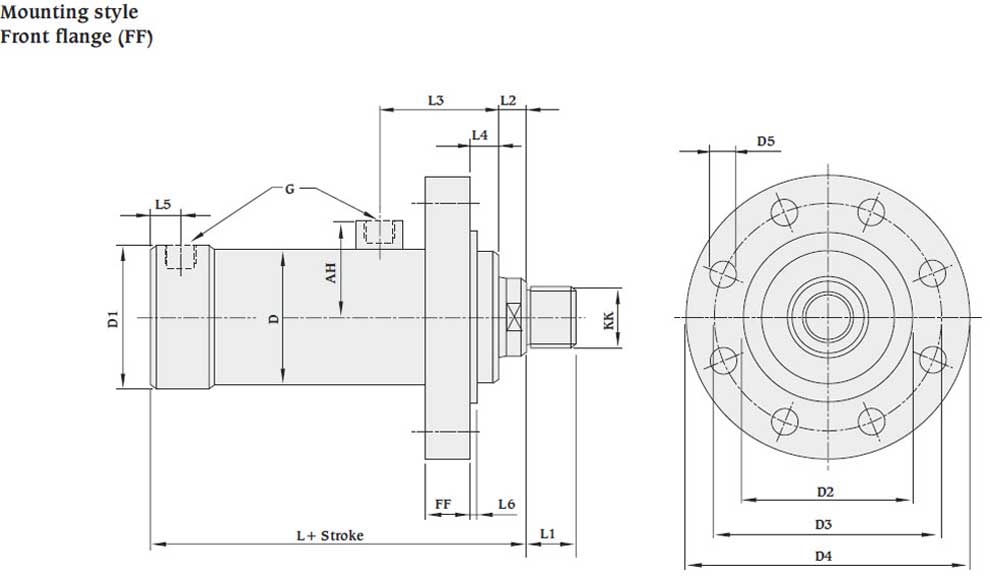

• 5 Standard mounting styles
• Provision for smaller as well as bigger    rod diameter for each bore size
• Bore size - 80mm to 300 mm
• Wide range of mounting accessories
• Bore sizes - 40mm to 200mm
• Strokes available in any practical stroke    length
• Maximum working pressure - 200 bar
• Piston rods - 45 mm to 220 mm
• Single rod design
• Non-cushioned
• Temperature range : -
   -20 C to + 80 C (standard)
   -20 C to + 150 C (optional
• Seal types to suit a wide variety of operating environments
• Standard fluid - Mineral oil DIN 51524    (HL, HLP)
