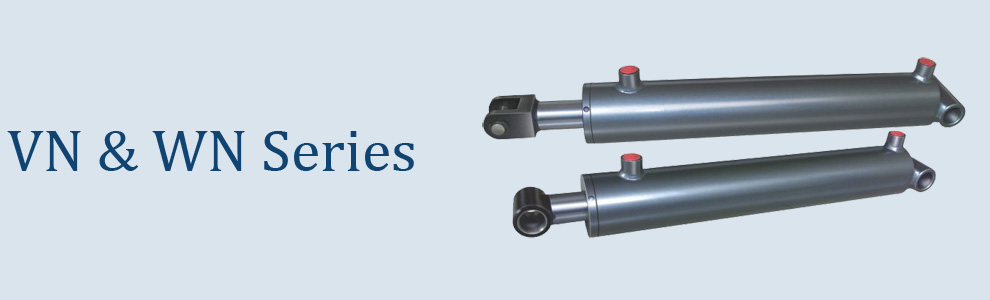

VN & WN Series

[ Welded construction Maximum pressure - 160 bar ]

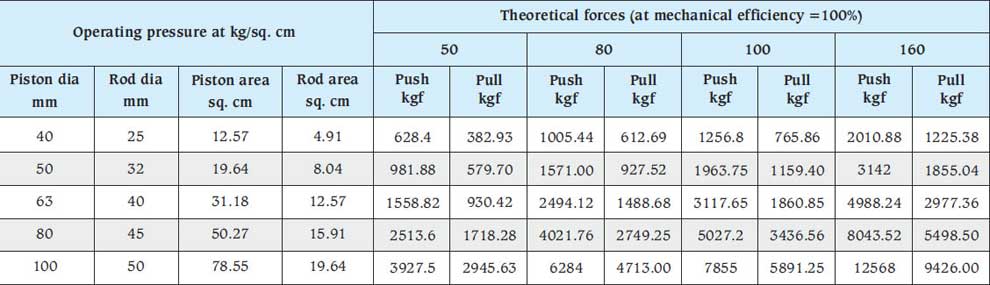

Cylinder selection guide



Ordering details for VN & WN series hydraulic cylinder



  • Features and specifications
    • Low cost cylinder
    • Thoroughly tested to our standard quality and performance
    • Double acting & single acting versions
    • Bore sizes : 40mm to 100mm
    • Strokes available in up to 1000mm stroke length
    • Single rod designs
    • Ideal for construction, agriculture and other industries    		   • Maximum working pressure : 160 bar
    • Piston rods : Precision ground & hard chrome plated
    • Non-cushioned
    • Temperature range : -
       -20 C to +80 C (standard)
       -20 C to 150 C (optional)
    • Standard fluid : Mineral oil DIN 51524 (HL, HLP)
    • Seal types to suit a wide variety of operating environments

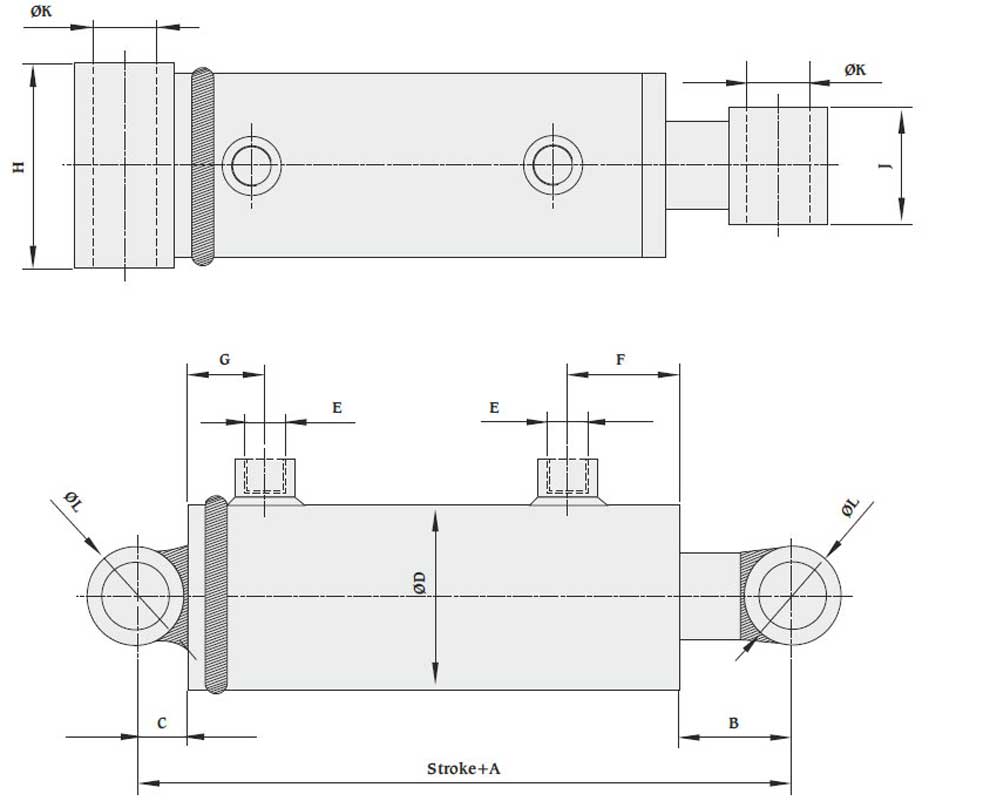

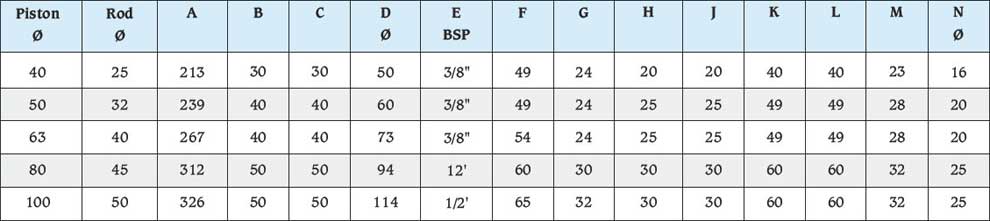

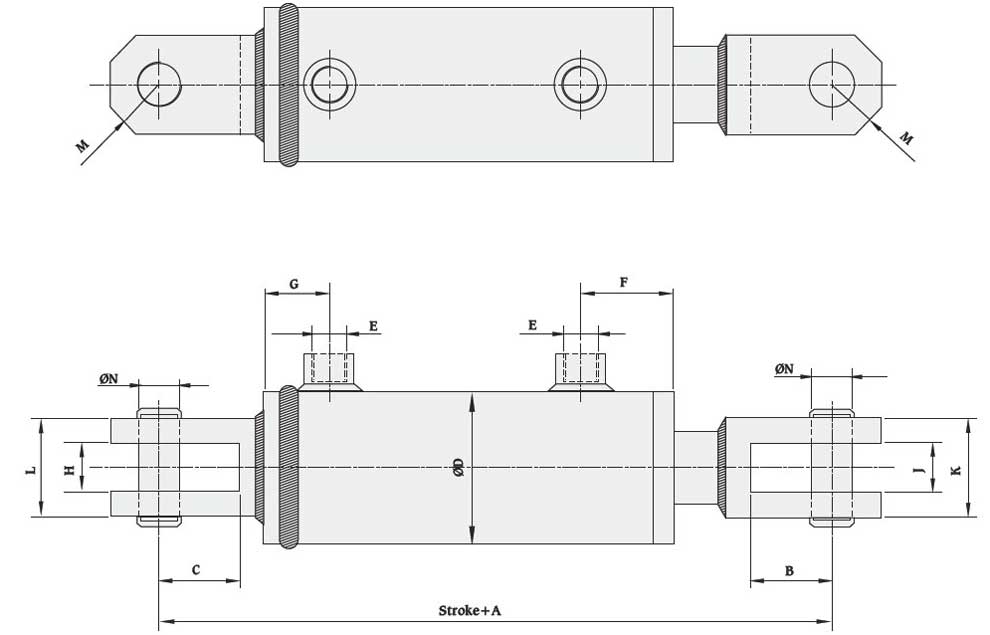

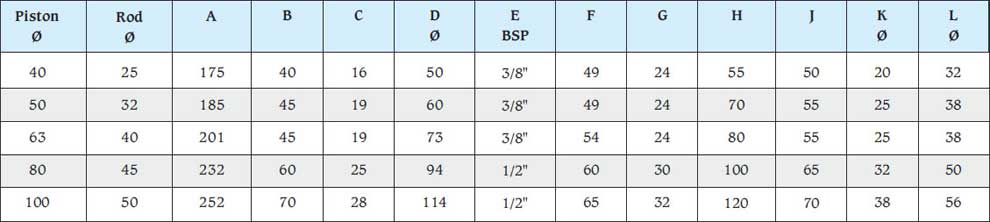

All dimensions are in millimeters unless otherwise stated.
